Dryer Fabrics

Product categories:Dryer Fabrics
Product material:Polyester PPS PEEK Polyamides
Process flow:yarn-weaving-heat setting treatment-seam-inspection-product
Field of application:
Purchase consulting:

Dryer Mesh Belt/Fabric

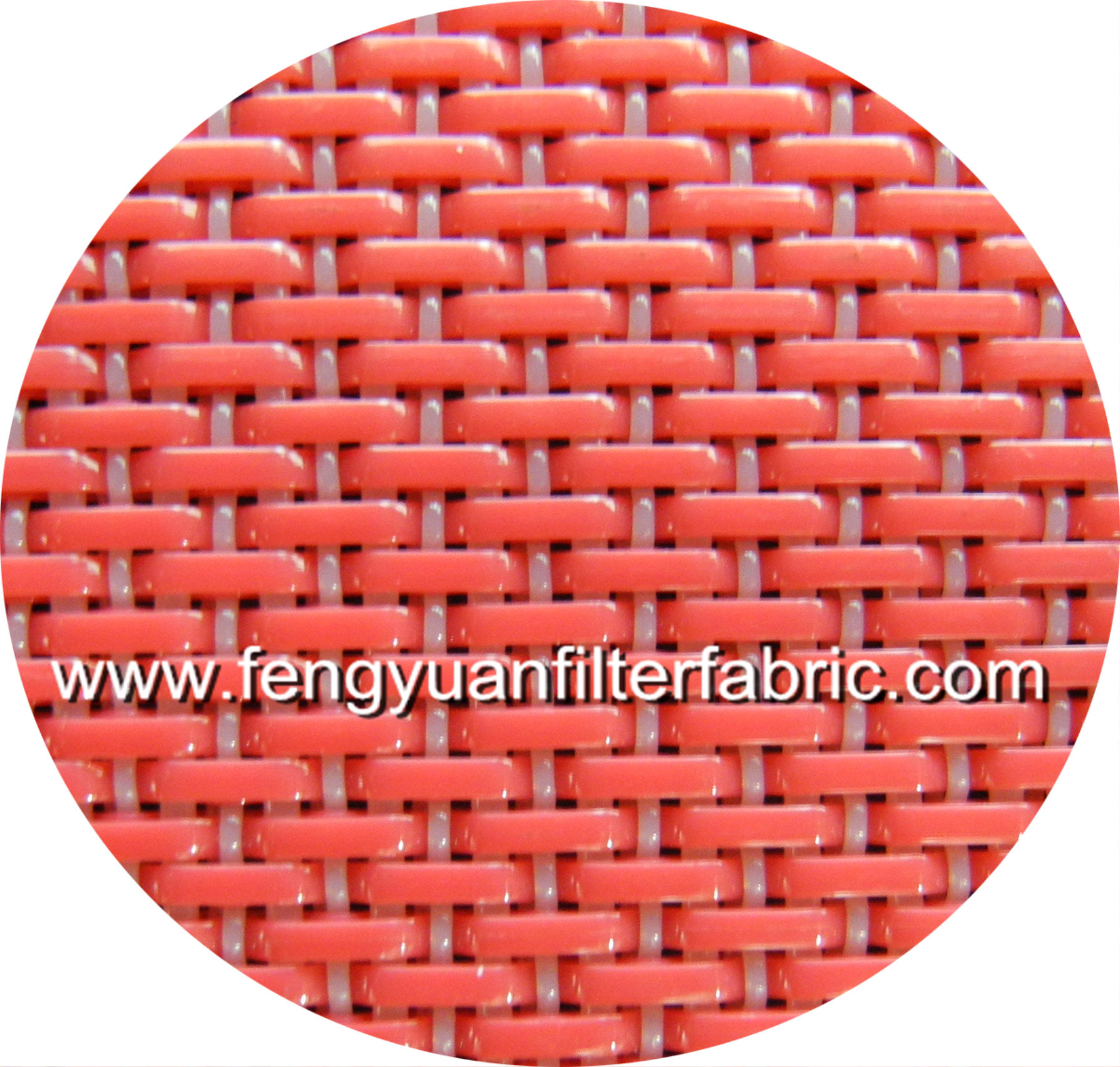

Polyester weave dryer fabrics are mainly used at the dry part of paper machine. There are round yarn dryer mesh( usually white) and flat yarn dryer mesh(usually red).

And for flat yarn dryer mesh,there are 3-shed and 4-shed.

3-shed weaving dryer fabrics are usually used in making culture paper, printing paper and light paper.etc.

4-shed weaving dryer fabrics are usually used in making culture paper, printing paper,writing paper, packing paper,corrugated paper,cardboard paper,etc.

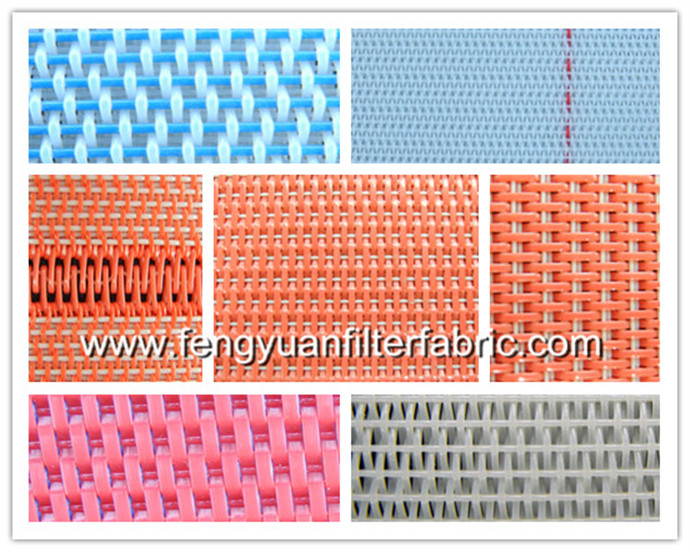

Photos of polyester dryer mesh belt/fabric- Paper machine clothing)

Weaving type  Model
No. 		Filament
diameter(mm) 		Density
(root/cm) 		Tensile strength
（N/cm) 		Thickness  Air
permeability 		Air
permeability
Warp Weft Warp Weft Surface Joint Ring
joint 		mm m3/m2h m3/m2h
3-shed series 22503 0.5 0.5 24 12 2000 1400 900 1.06 1.9 8000
22453 0.45 0.45 24 13 2000 1400 900 0.99 1.7 8500
24503 0.5 0.5 25 12 2000 1400 900 1.1 1.9 7000
24453 0.45 0.45 25 13 2000 1400 900 1.02 1.8 6700
4-shed series 20504 0.5 0.5 22 12 2000 1300 850 1.15 2 15000
22504 0.5 0.5 24 12 2000 1400 900 1.26 2.1 12000
24504 0.5 0.5 26 12 2100 1500 950 1.3 2.1 11000
18504 0.5 0.5 20 11 1800 1200 800 0.85 2 8000
Round yarn
dryer fabrics 		4106 0.5 0.7 22.8 12.4 2200 1500 900 1.3 1.75 6800
0.3
Flat yarn
dryer fabrics 		4106-1 0.58 0.35 21 15 2000 1400 800 1.2 1.5 2500
　 0.37 0.68
4106-2 0.58 0.35 21 14 2000 1400 800 1.2 1.5 3000
　 0.37 0.68
4106-3 0.58 0.35 21 13 2000 1400 800 1.2 1.5 4000
　 0.37 0.68
4106-4 0.58 0.35 21 13.5 2000 1400 800 1.2 1.48 3500
　 0.37 0.68
