Anti Static Filter Fabric
- Product categories:Anti Static Filter Fabric
- Product material:polyester yarn,copper wire
- Process flow:yarn-weaving-heat setting treatment-seam-inspection-product
- Field of application:chemical fiber,dry-forming,fiberwood,etc that need electric conduction, anti-static electricity.
- Purchase consulting:
Polyester anti-static filter fabrics are popularly used in chemical fiber,dry-forming,fiberboard industries. And some other industries that needs conductive, antistatic.

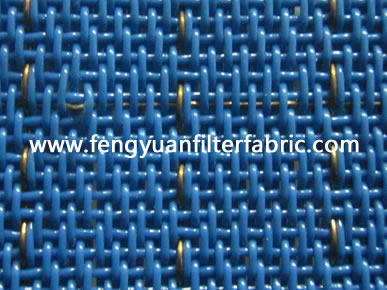

There is a conductive fiber (copper wire) through the polyester anti-static fabrics which can release the friction electrostatic, thus play a role in anti-static.

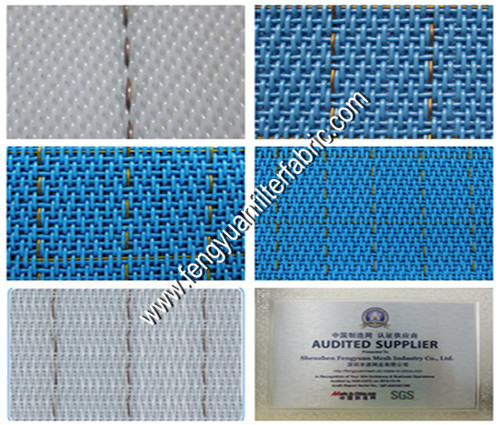

Features of Fengyuan polyester anti-static filter mesh belt
•flat surface,
•good air permeability,
•stable property against heat and moisture,
•low thermal shrinking, less elongation at heat,
•Resistant to most acids and organic solvents Safe for food processing applications
|
Model No. |
Filament diameter(mm) | Density (root/cm) | Tensile strength(N/cm) | Weight | Thickness | Air permeability | Air permeability (L/㎡/S) | ||||
| warp | weft | warp | weft | surface | joint | Kg/㎡ | mm | m3/㎡h |
CFM 127/pa |
CFM 200/pa |
|
| 31505 | 0.4 | 0.5 | 33 | 9 | 1600 | 900 | 0.8 | 1.3 | 2976 | 186 | 1170 |
| 14804 | 0.8 | 0.8 | 14.8 | 6.8 | 2000 | 900 | 2.2 | 2.2 | 4000 | 250 | 1740 |
| 14804 | 0.65 | 0.8 | 14.8 | 7.2 | 2000 | 900 | 1.6 | 1.95 | 7500 | 460 | 2850 |
