Anti Alkali Filter Fabrics
- Product categories:Anti Alkali Filter Fabrics
- Product material:Polyester yarn
- Process flow:yarn-weaving-heat setting treatment-seam-inspection-product
- Field of application:industries that need high tensile strength and high wear resistance.
- Purchase consulting:

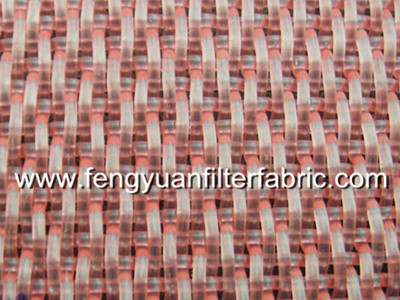

Polyester Anti-alkali Mesh Belt
Anti-alkali fabrics can be used as filter mesh in 100℃,the material with alkali content(sodium hydroxide) ≥20%.
Application:
1,Widely used in enviromental protection,paper,industry waster water treatment,etc.
2, Usd in some industry that need high tensile strength and high wear resistance.
| Model No. | Filament diameter | Density/root | Tensile strength | Weight | thickness | Air permeability | CFM | L/㎡/S | Material | ||||||||
| mm | cm | N/cm | |||||||||||||||
| warp | weft | warp | weft | surface | joint | Kg/㎡ | mm | m3/㎡h | 127/pa | 200pa | |||||||
| 121104 | 0.9 | 1.1 | 12.8 | 3.9 | 1600 | 900 | 1.85 | 3.05 | 9600 | 600 | 3700 | PA66 | |||||
| 15905 | 0.9 | 0.9 | 15.3 | 5 | 1600 | 900 | 2 | 2.77 | 6800 | 425 | 2610 | PA66 | |||||
| 061204 | 1.2 | 1.2 | 7 | 4.3 | 1600 | 900 | 1.9 | 2.9 | 6896 | 431 | 2670 | PPS | |||||
