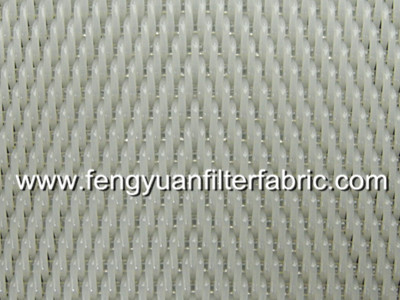

Sludge Dewatering Mesh Belt
- Product categories:Sludge Dewatering Mesh Belt
- Product material:100% PET
- Process flow:yarn-weaving-heat setting treatment-seam-inspection-product
- Field of application:mainly used in chemical, pharmaceutical, environmental protection and water treatment etc.
- Purchase consulting:
Sludge dewatering belt is mainly used in sewage treatment factories.It’s designed specially for sludge dehydration. Because of its special structure, the sludge can be peeled off easily after pigeonhole filter, the screen are easily cleaned and have a long working time. They have the characteristics of good water permeability, air permeability and non-revealed sludge, acid-resisting, alkali-resisting, heat resistance (180°C) .
Application of dewatering&conveyor mesh belt:
1.Environmental protection, high density board making, rubber and chemical industry.
2.Pulp making,Sulplate pulp packing and cardboard pulp,
3.Fiberboard plants, colliery,Medicine,printing,drying industry as conveyor belt, ,
5.Process hides,shoe-making,clothing,ceramics,etc as a conveyor belt
Photos of sludge dewatering fabric/mesh belt
| Model No. | Filament diameter(mm) | Density(root/cm) | Tensile strength（N/cm) | Weight | Thickness | Air permeability | Water permeability | |||
| Warp | Weft | Warp | Weft | Surface | Joint | kg/m2 | mm | m3/m2h | S/5L | |
| 2470 | 0.5 | 0.7 | 24 | 9 | 2000 | 900 | 1.23 | 1.9 | 6130 | 56.4 |
| 26808 | 0.5 | 0.8 | 27 | 8.5 | 2100 | 900 | 1.54 | 2.2 | 5120 | 60.3 |
| 27708 | 0.5 | 0.7 | 28 | 8.5 | 2200 | 900 | 1.53 | 2.1 | 4120 | 63 |
| 22903 | 0.5 | 0.9 | 23 | 5.5 | 2000 | 900 | 1.4 | 1.9 | 6800 | 48 |
| 16803 | 0.7 | 0.8 | 16.3 | 5.9 | 3200 | 1200 | 1.45 | 1.976 | 5500 | 70 |
| 16903 | 0.7 | 0.9 | 17 | 4.5 | 2200 | 900 | 1.7 | 2 | 7920 | 38.6 |
| 16903-1 | 0.7 | 0.9 | 16.3 | 5.5 | 3200 | 1200 | 1.52 | 2.263 | 6500 | 50 |
| 121103 | 0.9 | 1.1 | 12.5 | 3.8 | 3600 | 900 | 1.6 | 2.6 | 8610 | 32.4 |
| 151105 | 0.9 | 1.1 | 16 | 6.3 | 4500 | 1200 | 2.45 | 2.843 | 3800 | 90 |
