Stainless Steel Wire Mesh
- Product categories:Stainless Steel Wire Mesh
- Product material:302, 304, 304L, 316, 316L, 321,430 etc.
- Process flow:
- Field of application:mining , chemical industry, food industry and pharmaceutical industry
- Purchase consulting:
Stainless steel wire mesh
Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics.
Popular stainless steel materials: 302, 304, 304L, 316, 316L, 321,430 etc.
Popular Weaving Types: Plain Weave, Twilled Weave, Dutch Plain Weave, Dutch Twilled Weave, Reverse Weave, Five Heddle Weave.
The stainless steel wire mesh is extensively used in mining , chemical industry, food industry and pharmaceutical industry.

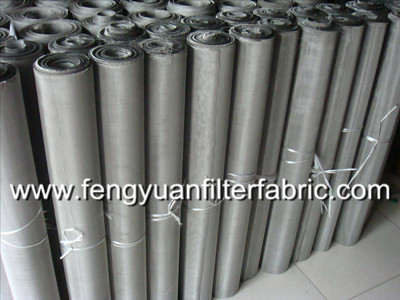

Photos of stainless steel wire mesh
Stainless Steel Wire Mesh (Plain Weave)
| mesh/inch | wire diameter | aperture | mesh/inch | wire diameter | aperture | material |
| (mm) | (mm) | (mm) | (mm) | |||
| 2mesh | 1.8 | 10.9 | 60mesh | 0.15 | 0.273 | 302,304,304L,316，316L,321etc |
| 3mesh | 1.6 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.2 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.8 | 3.433 | 100mesh | 0.1 | 0.154 | |
| 8mesh | 0.6 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.99 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.5 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.06 | 0.094 | |
| 16mesh | 0.4 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.06 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.3 | 0.97 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 |
