Plain Weave Fabric
- Product categories:Plain Weave Fabric
- Product material:Polyester yarn, PPS
- Process flow:yarn-weaving-heat setting treatment-seam-inspection-product
- Field of application:mainly used in pulp industry,packing paper of sulfate pulp industry ,man-made board industry,etc.
- Purchase consulting:

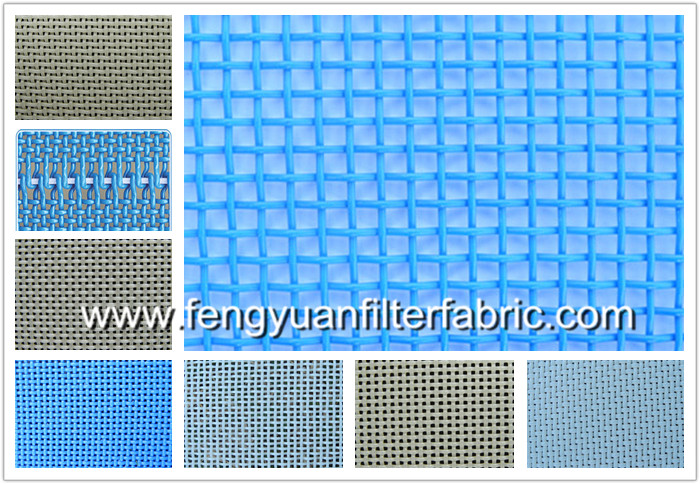

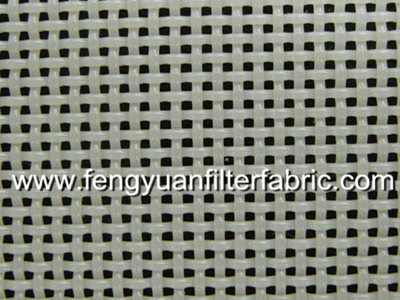

Plain weave filter mesh belt
With different weaving way, there are two-shed plain weave filter fabric and three-shed plain weave fabrics.
Features of polyester weave fabrics: first class monofilament, stable property, aerodynamical structure, acid resistance, alkali resistance,high temperature resistance, widely application.
Application of PET plain weave filter fabrics:
1.Pulp making,Sulplate pulp packing,cardboard pulp and fiberboard plants
2.Environment protection,sewage treatment plants.
3.Medicine,printing,drying industry as conveyor belt.
| Model No. |
Filament diameter (mm) |
Density (root/cm) |
Tensile
strength N/cm |
Weight | Thickness | Aperture | Mesh | Air permibility |
percent open(%) |
||||||||||||||
| warp | weft | warp | weft | surface | joint | Kg/㎡ | mm | mm | mm | m³/㎡h |
CFM 127pa |
L/㎡/S 200pa |
|||||||||||
| 021002blue | 1 | 1 | 2.85 | 2.65 | 1600 | 650 | 0.6 | 1.85 | 2.50*2.77 | 7.10*7.03 | 24656 | 2000 | 12600 | 52.55 | |||||||||
|
031002blue /white |
1 | 1 | 3.2 | 3.25 | 1600 | 650 | 0.8 | 1.86 | 2.12*2.07 | 8.10*8.20 | 22251 | 160 | 10500 | 45.9 | |||||||||
| 03902 | 0.9 | 0.9 | 3.9 | 3.65 | 1600 | 650 | 0.55 | 1.7 | 1.66*1.83 | 9.60*9.30 | 20000 | 1250 | 9000 | 43.58 | |||||||||
| 05602 | 0.6 | 0.6 | 5.9 | 5.6 | 1600 | 650 | 0.62 | 1.1 | 1.09*1.18 | 14.98*14.2 | 18000 | 1125 | 8210 | 42.89 | |||||||||
| 05802 | 0.8 | 0.8 | 5.1 | 5.3 | 1600 | 650 | 0.89 | 1.48 | 1.16*1.08 | 13*13.5 | 15840 | 990 | 6350 | 34.09 | |||||||||
| 06652 | 0.65 | 0.65 | 7.4 | 6.8 | 1600 | 650 | 0.65 | 1.19 | 0.70*0.82 | 18.8*17.3 | 14400 | 1190 | 6350 | 34.09 | |||||||||
| 06802 | 0.8 | 0.8 | 6.6 | 6.5 | 1600 | 650 | 0.85 | 1.45 | 0.72*0.73 | 16.8*16.5 | 11600 | 725 | 4600 | 22.65 | |||||||||
|
06702blue /white |
0.7 | 0.7 | 7 | 7 | 1600 | 650 | 0.77 | 1.3 | 0.72*0.72 | 17.8*17.8 | 11000 | 690 | 4550 | 26.01 | |||||||||
|
07802blue /white |
0.8 | 0.8 | 7.8 | 7 | 1600 | 650 | 1.1 | 1.45 | 0.32*0.54 | 20.3*18 | 5920 | 370 | 3620 | 16.54 | |||||||||
| 09502 | 0.5 | 0.5 | 9.7 | 10.3 | 1600 | 650 | 0.5 | 0.9 | 0.53*0.47 | 25*26.2 | 10100 | 634 | 4130 | 24.97 | |||||||||
| 08603 | 0.5 | 0.6 | 9.4 | 9 | 1600 | 650 | 0.6 | 1.15 | 0.56*0.51 | 23.8*23.1 | 9000 | 560 | 2760 | 24.38 | |||||||||
| 09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 650 | 0.45 | 0.88 | 0.55*0.71 | 25.4*21.8 | 15570 | 970 | 6150 | 33.71 | |||||||||
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1600 | 650 | 0.63 | 0.95 | 0.24*0.65 | 34.3*21.6 | 6500 | 282 | 1960 | 18.68 | |||||||||
| 06803 | 0.7 | 0.8 | 7 | 5.5 | 1600 | 650 | 0.75 | 1.53 | 0.72*1.0 | 17.8*14 | 16000 | 1000 | 6280 | 28.56 | |||||||||
| 07803 | 0.8 | 0.8 | 8 | 8 | 1600 | 650 | 1.15 | 1.66 | 0.45*0.45 | 20.32*20.32 | 9184 | 574 | 3720 | 12.96 | |||||||||
| 07903 | 0.8 | 0.8 | 7.6 | 6.5 | 1600 | 650 | 1.25 | 1.76 | 0.51*0.63 | 19.3*16.5 | 6400 | 400 | 2550 | 16.26 | |||||||||
