Triple Layers Forming Fabrics
- Product categories:Polyester forming fabrics
- Product material:Polyester,PPS

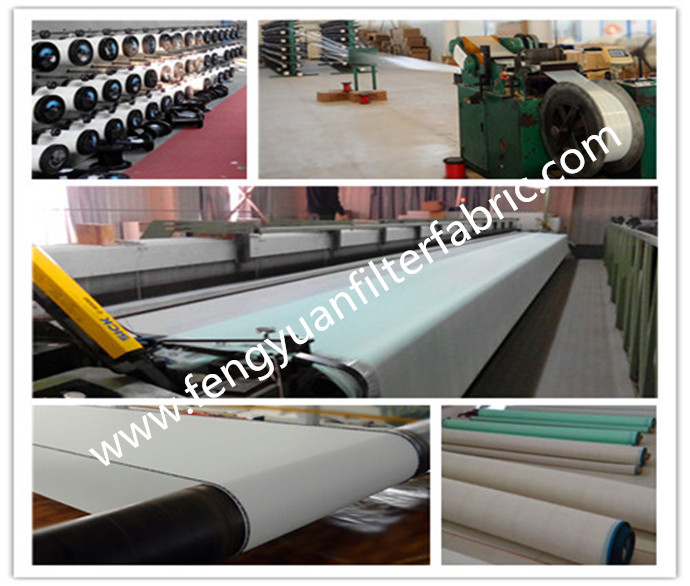

- Process flow:Yarn-Warping-Weaving-initial survey-1st heat setting-seam-2nd heat setting-inspetion-products
- Field of application:Paper industry
- Purchase consulting:

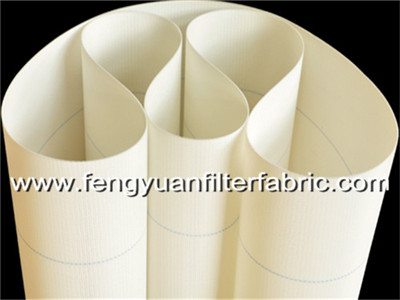

Forming fabrics - three layers
According to different weaving way, there are two series:SSB froming fabric and IWB froming fabric.
IWB (Integrated Warp Binder) three layer forming fabric is suitable for making printing paper, cigarette paper, corrugated paper, cardboard paper, etc
SSB (Sheet Support Binder) forming fabric is usually used in making culture paper,specialty paper,tissue paper,etc. SSB three layer forming fabric is suitable for making culture paper, specialty paper, tissue paper, etc;
Features of polyester fabric/cloth/mesh belt:
smooth surface, stable size, good wear resistance, corrosion resisting, heat resistance, good air permeability, fast water leakage, long service life,etc.
3 layers forming cloth-Paper Machine Clothing
| Weaving Type | Model No. |
Filament diameter(mm) |
Density(root/cm) |
Tensile strength |
Air permeability |
||
| Warp | Weft（top/bottom） | Warp | Weft | N/cm | m3/m2h | ||
|
Three layers forming fabric |
563520 | 0.15,0.20 | 0.15,0.15/0.35,0.35 | 70 | 55 | ≥1600 | 5000±500 |
| 364024 | 0.20/0.20 | 0.20,0.17/0.40,0.40 | 42 | 52 | ≥1600 | 6500±500 | |
