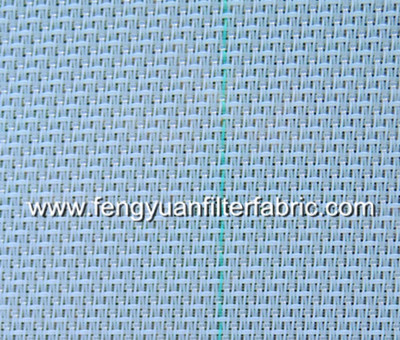

2.5 Layers Forming Fabrics

Product categories:Polyester forming fabrics
Product material:Polyester yarn,PPS
Process flow:Yarn-Warping-Weaving-initial survey-1st heat setting-seam-2nd heat setting-inspetion-products
Field of application:mainly used in paper making industry
Purchase consulting:

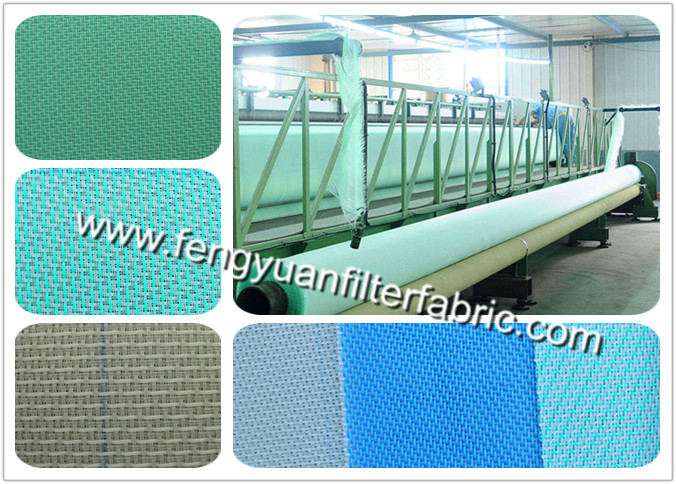

Polyester Forming Mesh Blelt-2.5 layer

According to different weaving way,there are two series of 2.5 layers forming fabrics.
1),8-shed 2.5 layers forming fabric is usually used in making culture paper,printing paper,tissue paper,the surface pulp and inner pulp of the board paper,etc.
2),16-shed 2.5 layers forming fabric is widely used in middle and high speed paper machine to produce culture paper,electrostatic copy paper,single&double gummed paper,coated paper,cup paper,etc.

Features of PET froming fabrics/cloth/mesh belt:

smooth surface, stable size, good wear resistance, corrosion resisting, heat resistance, good air permeability, fast water leakage, long service life,etc.



Weaving Type Model No. Filament diameter(mm) Tensile strength Air permeability
Warp Weft（top/bottom） Warp Weft m3/m2h
           8-shed&16-shed forming fabrics 2B3316 0.28 0.20，0.27/0.40，0.40 37～38 40～41 6000
2B3316-1 0.28 0.20，0.27/0.45，0.45 37～38 37～38 6000
2B3316-2 0.28 0.20，0.27/0.45，0.45 37～38 31～32 8000
2B3616 0.25 0.20，0.30/0.50，0.50 39～40 38～39 7500
2B3816 0.25 0.20，0.25/0.50，0.50 43～44 39～40 7000
2B4216 0.22 0.18，0.25/0.40，0.40 47～48 41～42 6500
2B5616 0.17 0.13，0.20/0.35，0.35 63～64 56.5～57.5 5000
2B6016 0.17 0.13，0.20/0.35，0.35 67～68 53～54 4800
2B5008 0.17 0.13，0.18/0.32，0.32 55～56 48～49 6500
2B5216 0.17 0.17，0.22/0.27，0.27 57.5～58.5 50～51 5300
2B5216-1 0.17 0.19，0.22/0.35，0.35 57.5～58.5 43.5～44.5 6200
2B5408 0.17 0.13，0.20/0.35，0.35 59～60 43～44 6300
2B5416 0.17 0.13，0.20/0.35，0.35 59.5～60.5 42～43 6000
2B5608 0.17 0.13，0.18/0.22，0.22 61～62 52～53 5700
2B5608-1 0.17 0.13，0.20/0.25，0.25 60～61 54～55 5600
2B5608-2 0.17 0.13，0.20/0.32，0.32 60～61 48～49 6000
2B5608-3 0.17 0.13，0.20/0.35，0.35 60～61 47～48 5600
2B5608-4 0.17 0.13，0.20/0.32，0.32 61.5～62.5 55.5～56.5 6900
2B5608-5 0.18 0.13，0.18/0.22，0.22 62～63 53～54 6800
2B5608-6 0.18 0.13，0.20/0.25，0.25 61～62 61～62 5940
2B5608-7 0.15 0.13，0.18/0.25，0.25 62～63 53～54 6600
2B5608-8 0.15 0.13，0.18/0.32，0.32 61～62 56～57 6400
2B5608-9 0.17 0.13，0.18/0.35，0.35 61～62 51～52 6900
2B5608-10 0.17 0.13，0.22/0.35，0.35 61.5～62.5 48.5～49.5 5800
2B5808 0.17 0.13，0.18/0.22，0.22 63～64 53～54 6500
2B5808-1 0.17 0.13，0.20/0.25，0.25 63～64 54～55 5000
2B5808-2 0.17 0.13，0.20/0.25，0.25 63～64 51.5～52.5 5100
2B6208 0.17 0.13，0.18/0.20，0.20 68～69 56.5～57.5 5500
2B6208-1 0.17 0.13，0.18/0.20，0.20 68～69 54.5～55.5 6000
2B6208-2 0.17 0.13，0.18/0.23，0.23 63～64 51.5～52.5 5100
2B6216 0.17 0.13，0.18/0.23，0.23 68～69 61.5～62.5 5600
2B6216-1  0.17 0.13，0.20/0.25，0.25 68～69 64.5～65.5 6400
2B6216-2 0.17 0.13，0.18/0.25，0.25 68～69 51.5～52.5 5400
2B6216-3 0.17 0.13，0.20/0.35，0.35 68～69 52.5～53.5 5500
2B6216-4 0.17 0.13，0.20/0.35，0.35 68～69 49.5～50.5 8000
2B6216-5 0.17 0.13，0.20/0.35，0.35 68～69 46.5～47.5 7000
2B6408 0.17 0.12，0.18/0.20，0.20 70～71 57～58 6200
2B6408-1 0.17 0.12，0.18/0.20，0.20 70～71 65～66 6500
