Double Layers Forming Fabrics

Product categories:Polyester forming fabrics
Product material:Polyester
Process flow:Yarn-Warping-Weaving-initial survey-1st heat setting-seam-2nd heat setting-inspetion-products
Field of application:mainly used paper making industry.
Purchase consulting:

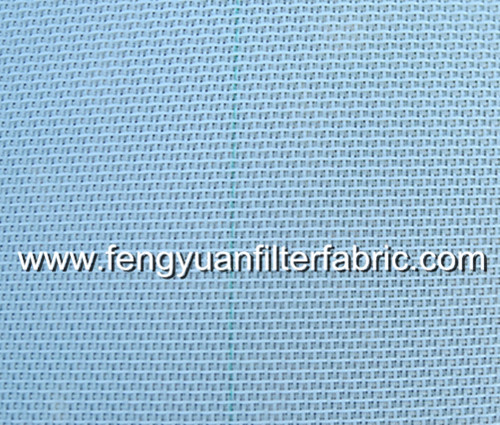

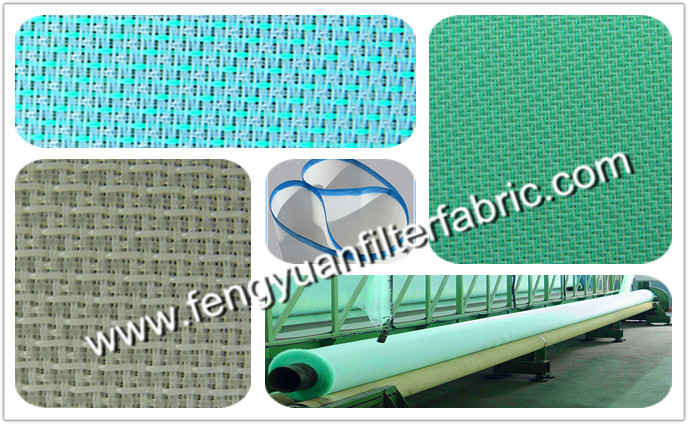

Polyester Forming Fabrics - two layers

There are 7-shed, 8-shed double layers forming fabrics.

7-shed is suitable for making high grade print paper and tissue papers;

8-shed is suitable for making high grade print paper, offset print paper,tissue paper and board paper′s surface paper,innner paper, etc;

Features:

smooth surface, stable size, good wear resistance, corrosion resisting, heat resistance, good air permeability, fast water leakage, long service life,etc.

Weaving type Model No. Filament diameter(mm) Density(root/cm) Strength(N/cm) Thickness Air permeability Max elongation under 50N/cm
Warp Weft Warp Weft Surface Joint mm m3/m2h
8-shed double forming fabrics 56188 0.17 0.18/0.20 61.3 51.2 ≥850 ≥600 0.65 5700 0.60%
0.20(t66)
60188 0.18 0.19/0.20 66 49 ≥900 ≥650 0.68 4750 0.60%
0.20(t66)
62188 0.15 0.16/0.19 70.5 50.5 ≥900 ≥650 0.6 6200 0.60%
0.19(t66)
