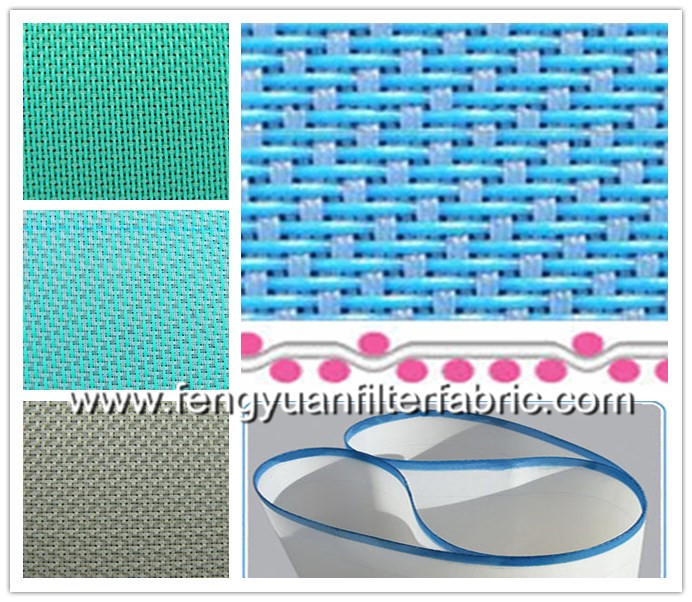

Single Layer Forming Fabrics

Product categories:Polyester forming fabrics
Product material:Polyester/PA66
Process flow:Yarn-Warping-Weaving-initial survey-1st heat setting-seam-2nd heat setting-inspetion-products
Field of application:Paper industry
Purchase consulting:

As dehydration and forming fabric,polyester forming fabric are mainly used in paper industry. Polyester forming fabric can be divided into single /double /2.5/triple layers.And forming clothing have the characteristics of stable size,acid-resisting,alkali-resisting,heat resistance,good water permeability,air permeability,long service life and so on.

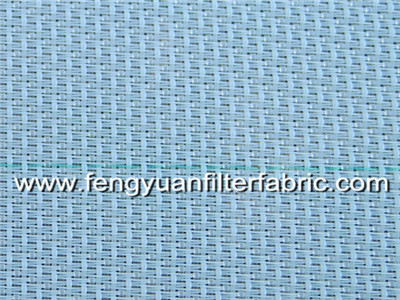

Single layer fabrics series:
4-shed single layer froming fabric is usually used in making culture paper,such as news paper,hectograph paper,electrostatic copy paper,middle&low gram writing paper and so on.
5-shed single layer froming fabric is usually used in making middle gram writing paper, news paper, hectograph paper and so on.
8-shed single layer forming fabric is usually used in making coated paper,kraft paper,white board, corrugated paper and liner paper,etc.

Paper Machine Clothing- Forming Cloth/Fabric

Weaving type Model No. Filament diameter(mm) Density(root/cm) Strength（N/cm) Thickness Air permeability Max elongation under 50N/cm
Warp Weft Warp Weft Surface Joint mm m3/m2h
4-shed forming fabrics 27254 0.2 0.25 30 22 ≥600 ≥400 0.49 8000 0.60%
27254-1 0.2 0.25 30 23 ≥600 ≥400 0.495 7500 0.60%
27254-2 0.2 0.25 30 24 ≥600 ≥400 0.5 7000 0.60%
27274 0.2 0.27 30 21.5 ≥600 ≥400 0.51 7800 0.60%
27274-1 0.2 0.27 30 22.5 ≥600 ≥380 0.515 7300 0.60%
31204 0.18 0.2 35 28 ≥600 ≥380 0.43 7500 0.68%
31204-1 0.18 0.2 35 30 ≥600 ≥380 0.43 7000 0.68%
31204-2 0.18 0.2 35 30.5 ≥600 ≥380 0.43 6500 0.68%
5-shed forming fabrics 28205 0.2 0.2 30 27.5 ≥600 ≥400 0.46 6800 0.60%
30205 0.17 0.2 32 28.5 ≥500 ≥350 0.41 7100 0.60%
30175 0.17 0.17 32 29.5 ≥500 ≥350 0.39 6600 0.60%
31215 0.2 0.21 35 32 ≥600 ≥400 0.48 7000 0.60%
8-shed forming fabrics 25358 0.22 0.35 28 19.5 ≥700 ≥500 0.85 9000 0.65%
25388 0.22 0.38 29.5 19 ≥700 ≥500 0.87 8500 0.65%
27358 0.22 0.35 29 20 ≥700 ≥500 0.85 8500 0.65%
27388 0.22 0.38 31.5 19 ≥700 ≥500 0.87 8000 0.65%
